6SE7036-5WK20 is air-cooled 630kW inverter chassis only, DC-fed, must pair with matching rectifier unit to form complete 4-quadrant or 2-quadrant drive system; model suffix “WK20” stands for air-cooled 890–930VDC high-current frame, distinct from water-cooled 6SE7036-5WK60 variant.
6RY1703-0CM00 is Siemens power interface spare board C98043-A7042-L1 for 850–1680A SIMOREG 6RA70 DC drives. It samples main circuit signals and monitors fuses, runs on 24VDC with 3.2W power consumption, CE/RoHS certified for rolling mill and heavy industrial drive maintenance.
6AV6646-1AC22-0AX0 is Siemens SIMATIC ITC1900 industrial thin client HMI made in Germany. Equipped with a 19-inch 1366×768 widescreen TFT touch display, it runs on 24VDC power and integrates Ethernet plus dual USB ports. Supporting RDP, VNC and Web protocols, it remotely connects PLC and WinCC systems for workshop monitoring. Its sturdy aluminum casing adapts to 0–45°C industrial environments for stable long-term operation.
This DCS550‑S02‑0100‑05‑00‑00 is a four-quadrant air-cooled DC drive with 100A armature current for 230–525V AC mains. It integrates field excitation, supports speed/torque closed-loop control and winder logic, equipped with standard digital I/O, encoder input and two expansion slots for fieldbus modules.
SIMOVERT Master drives Motion Contro Performance 2 Converter Built-in unit IP00 380-480 V 3 AC, 50/60 Hz, 491A Type rating: 250 kW documentation on CD

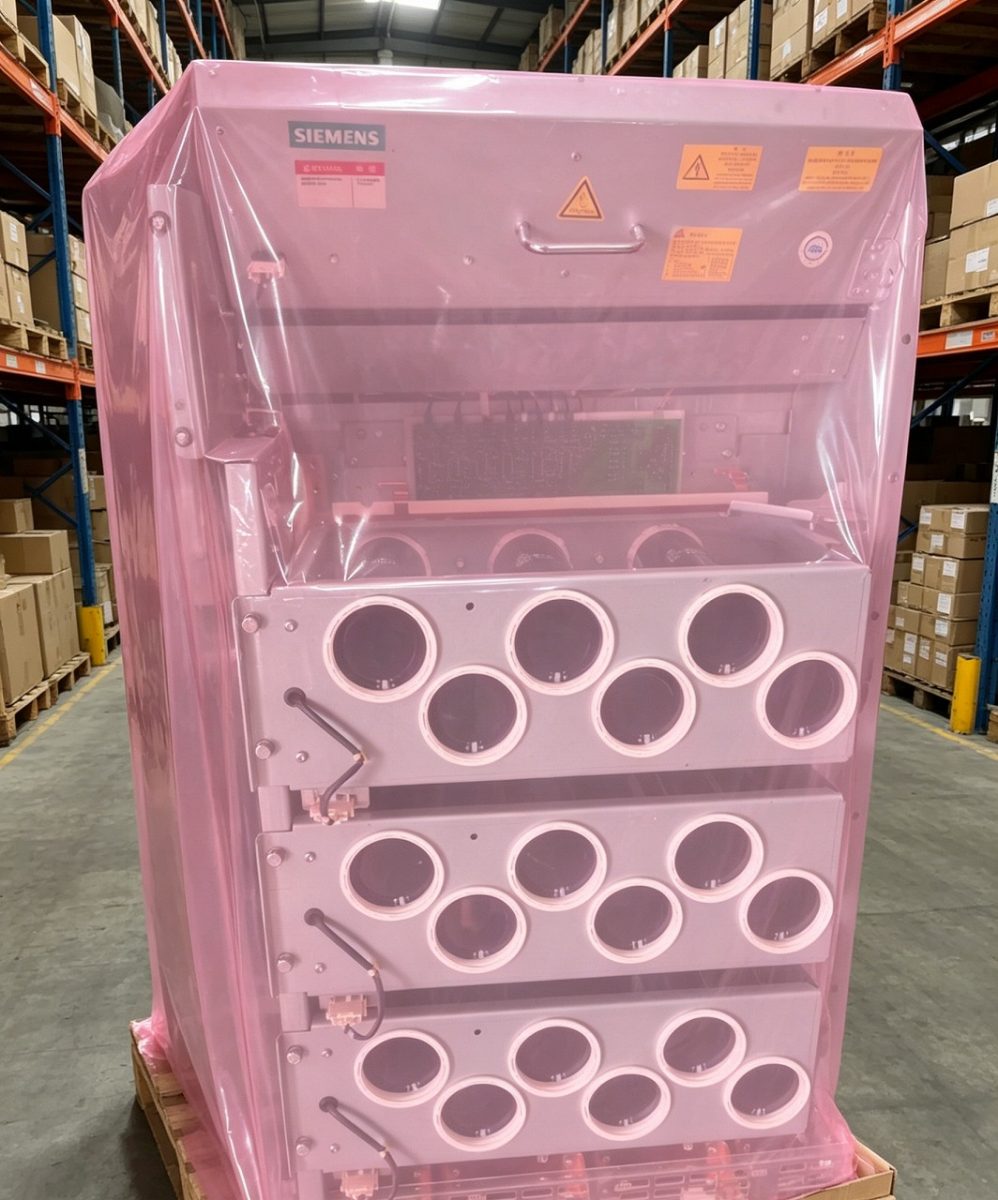

6SE7036-0TJ60 6SE7036-0TJ60 6SE7036-0TJ60 SIMOVERT MASTERDRIVES VECTOR CONTROL ,INVERTER CHASSIS UNIT, IP00 510-650V DC, 590 A
NOM. POWER RATINGS: 315KW
SIMOVERT Master drives Vector Control Inverter device Built-in unit, IP00 510-650 V DC, 590A Type rating: 315 kW water-cooled
