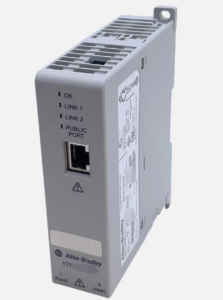

1783-RA2TGB
ALLEN-BRADLEY 1783 Stratix 4300 Remote Access Router, VPN, 1 Ethernet 10/100/1000 Port WAN, 1 Ethernet 10/100/1000 Port LAN, RS232/422/485 (DB9M) Isolated, USB 2.0, Digital Input/Output, Power 12/24VDC isolated
| STRATIX FAMILY SELECTION ASSISTANCE – OPTIONAL | |
| Type | Remote Access |
| # of Fiber Ports Required | None |
| # of Combo Ports (Copper/Fiber) | none |
| Do you need connectivity to an IT environment? (using Cisco technology and tools (CLI, CNA, CiscoWorks)) | No |
| Do you need any of these network services? | None |
| Voltage and Current rating | 24V DC(9…34V DC), 0.6A (SELV) |
| Do you need routing capability? | Yes |
| Do you Need PoE (Power Over Ethernet) | No |
| Do you need integrated DLR? | No |
| NAT | Yes |
| Internet Sharing | Yes |
| VPN | Yes |
| Static Routing | Yes |
| Wireless Connectivity | None |
| DATA | |
| Stratix Ethernet Family | Stratix 4300 |
| Environment | IP20 |
| Do you Need more than 2 gigports | 2 |
| Ethernet Family | 1783 Stratix 4300 Remote Access Router, VPN, 1 Ethernet 10/100/1000 Port WAN, 1 Ethernet 10/100/1000 Port LAN, RS232/422/485 (DB9M) Isolated, USB 2.0, Digital Input/Output, Power 12/24VDC isolated |
| Please Note | You have selected a Stratix 4300, a FactoryTalk Remote Access Subscription is required. |
| Additional Details | |
| Mounting | Din Rail |
| Operating Temperature | -20..+65 °C (-4…+149 °F) |
