Day: December 1, 2023

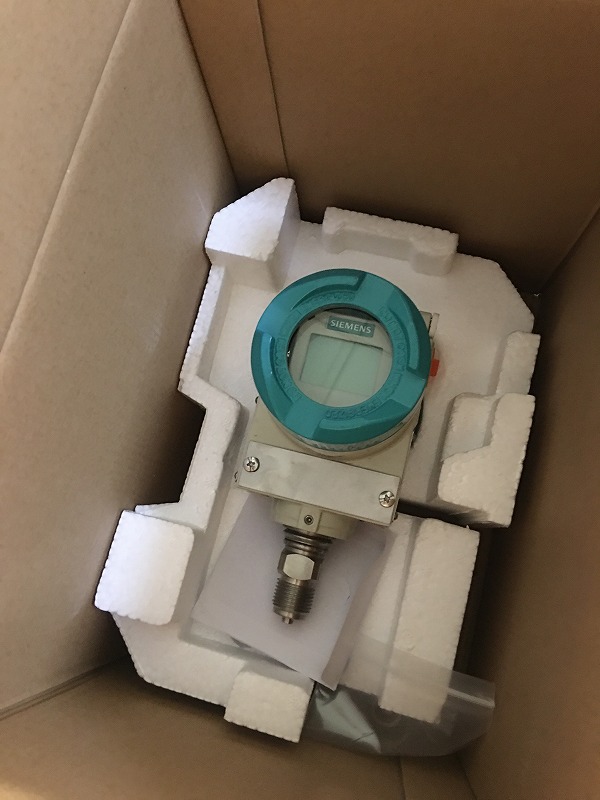

7MF4033-1DA00-1DB6-Z E46 SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning Span: 0,16 … 16 bar g (2.32 … 232 psi g), overload limit 32 bar Diaphragm stainless steel, measuring cell stainless steel Process connection: connection shank G1/2 B to EN 837-1 Die-cast aluminium housing Standard design Explosion protection EEx d cenelec) Electric connection and cable inlet: cable gland M20 x 1.5 Housing cover with window Ex Approval IEC Ex (Ex d) (IEC Ex marking at the transmitter, no ATEX marking)

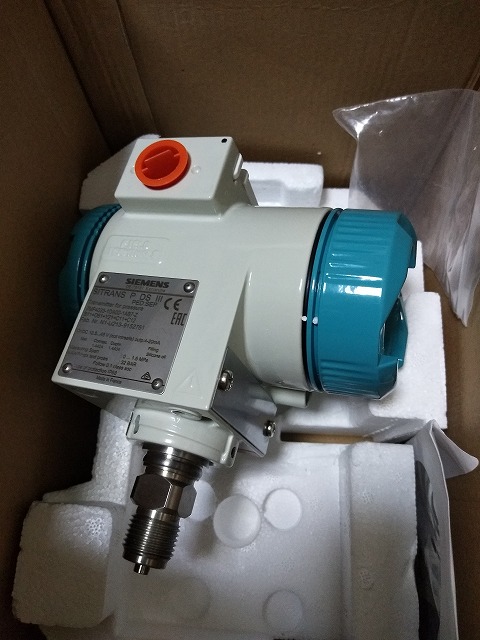

7MF4033-1DA00-1AB7 SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning Span: 0,16 … 16 bar g (2.32 … 232 psi g), overload limit 32 bar Diaphragm stainless steel, measuring cell stainless steel Process connection: connection shank G1/2 B to EN 837-1 Die-cast aluminium housing Standard design None explosion protection Electric connection and cable inlet: cable gland M20 x 1.5 Housing cover with window (digital indicator visible, customized adjustment supplement Y21 required)

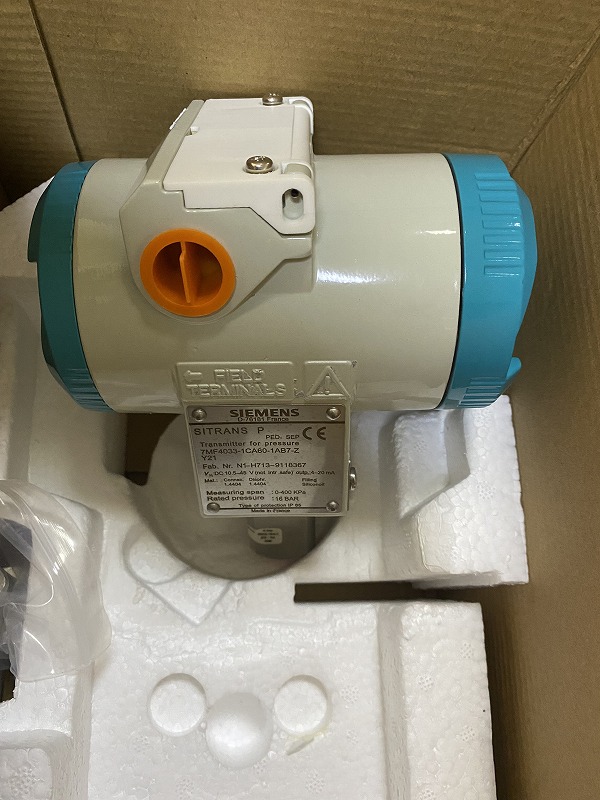

7MF4033-1CA60-1AB7- Z Y21 SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning Span: 0,04 … 4 bar g (0.58 … 58 psi g), overload limit 10 bar Diaphragm stainless steel, measuring cell stainless steel Process connection: Male thread 1/2-14NPT Die-cast aluminium housing Standard design None explosion protection Electric connection and cable inlet: cable gland M20 x 1.5 Housing cover with window (digital indicator visible, customized adjustment supplement Y21 required) Adjustment digital indicator specify plain text Y21: mBar, bar, kpa, mpa,…

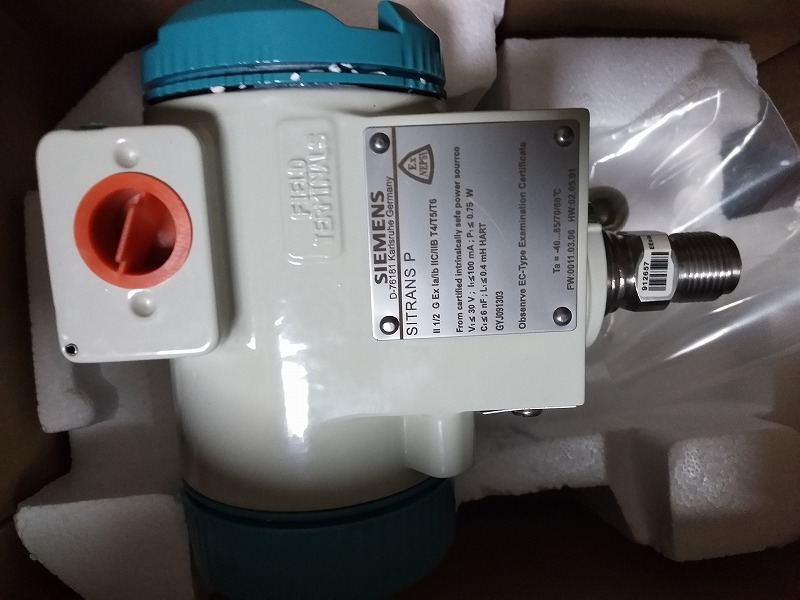

7MF4033-1BA00-2BB1 SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning Span: 0,01 … 1 bar g (0.15 … 14.5 psi g), overload limit 6 bar Diaphragm stainless steel, measuring cell stainless steel Process connection: connection shank G1/2 B to EN 837-1 Die-cast aluminium housing International design english inscription and documentation as cd Explosion protection EEx ia Electric connection and cable inlet: cable gland M20 x 1.5 without visible digital indicator (digital display hidden, setting: mA)

7MF4034-1DA00-2AB1 Product Article Number (Market Facing Number) 7MF4034-1DA00-2AB1 Product Description SITRANS P DS III / P410, PROFIBUS PA, transmitter for pressure ****************************** Attention, product canceled
